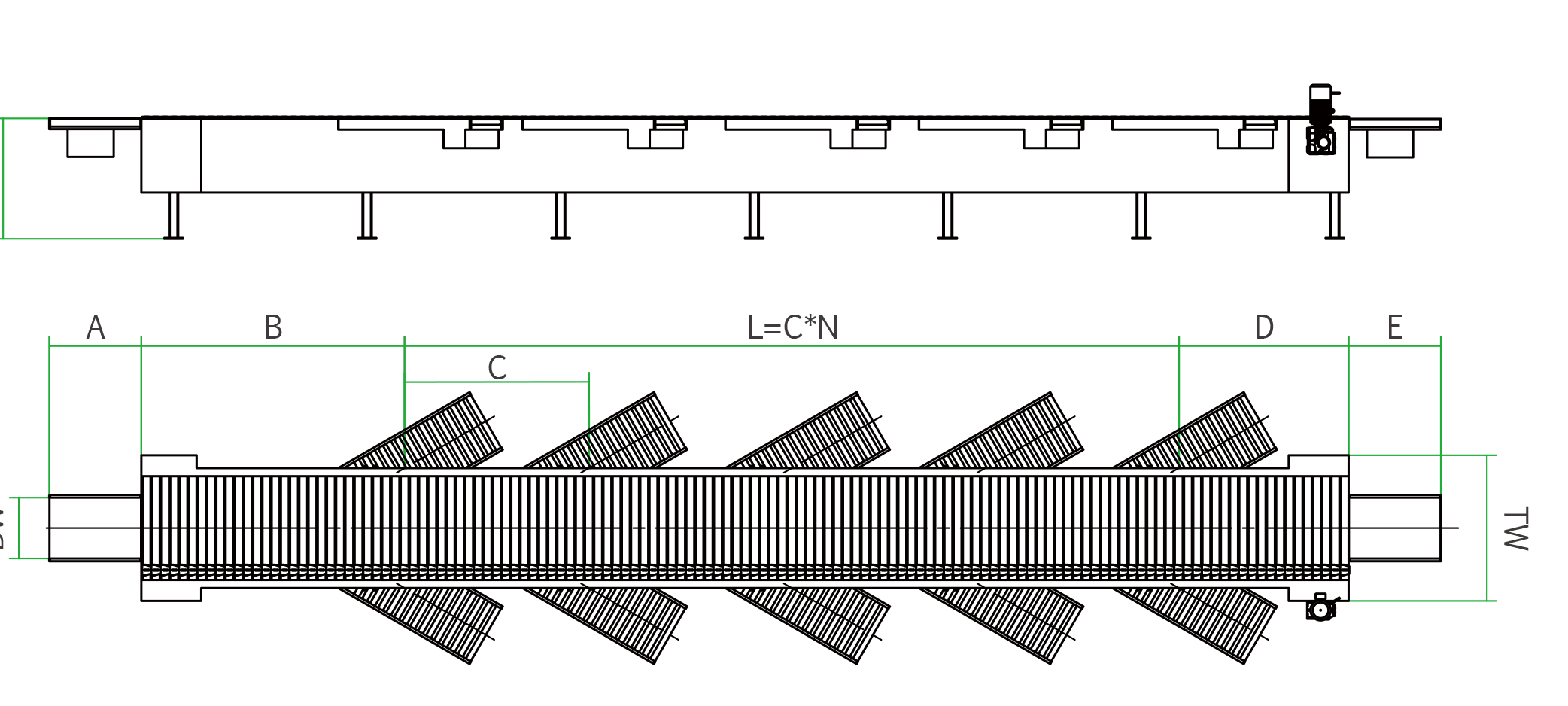

Technical Detail of Sliding Shoe Sorters
| Series | 1 | 2 | 3 | 4 | 5 | |
| Width (mm) | 500 | 700 | 900 | 1100 | 900 | |
| SW (mm) | 600 | 800 | 1000 | 1200 | 960 | |
| FW (mm) | 1150 | 1350 | 1550 | 1750 | 1550 | |
| A | single | 2000 | 2000 | |||
| double | 3000 | 2000 | ||||
| B | single | 1400 | 2300 | |||
| double | 1600 | 2300 | ||||
| C | 1200 | 3000 | ||||
| D | 1400 | 1100 | ||||
| E | 1500 | 2000 | ||||
| L1 | single | 1200 | 3000 | |||
| double | 1200 | 4000 | ||||
| Sorting Capacity | Average of 8000 pieces per hour | |||
| Speed | Maximum 150 m/min | |||
| Each Length | Max 65m (splicing) | |||
| Width | 500 - 1000mm | |||
| Height | 1300mm | |||
| Good Shapes | cartons, containers, belts, flat surfaces | |||
| Good sizes | Width | Length | Height | Weight |
| 700mm | 1200mm | 600mm | 30kg | |
| 20mm | 200mm | 10mm | 0.5kg | |
| Please contact our sales representatives when the weight exceeds 30kg | ||||
Note: The above are the company's existing standard equipment parameters, supporting non-standard customization design.
|
